Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel

Name: Closed Type Floor Deck Roll Forming Machine For GI PPGI Stainless Steel
Brand: BELI
Price: 35000 USD

China Closed Type Floor Deck Roll Forming Machine For GI / PPGI / Stainless Steel wholesale

Brand Name : BELI

Model Number : BELI 65-185-555 SERIES

Certification : CE

Place of Origin : CHINA

Payment Terms : 30% TT in advance, 70% TT after machine check and accept before delivery

Delivery Time : 45 to 60 days

Packaging Details : Standard Packing

MOQ : 1 SET

Price : USD, 35000-45000/SET

Supply Ability : 50 sets per quarter

Machine : Floor Decking Roll Forming Machine

Main Motor Power : 22KW

Control System : PLC Control System

Forming Steps : 35 Steps

Raw Material : GI, PPGI, Stainless Steel

Weight of the machine : 15 Ton

Contact Now

Closed Type Floor Decking Roll Forming Machine For GI, PPGI, Stainless Steel

Brief Description

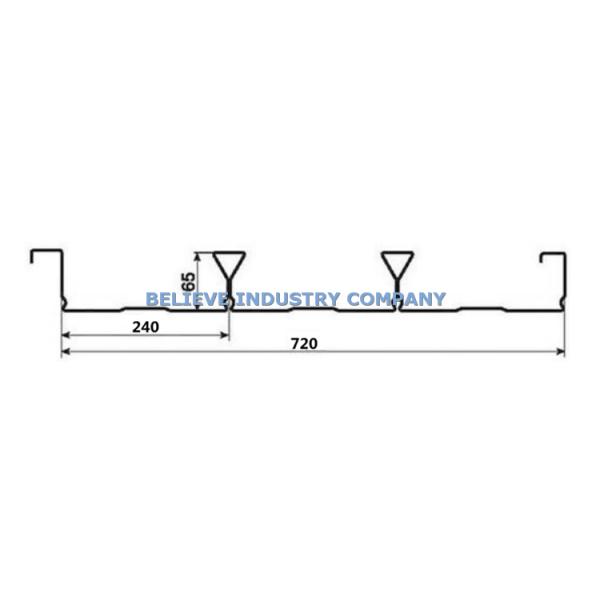

This cold roll forming machine is able to produce closed type steel decking sheets that bond with the concrete slad to develop a composite floor system for steel buildings. Main material can be roll formed are galvanized steel coils with the thickness of 0.8mm to 1.2mm.

This floor decking machine can produce different decking profiles with different material feeding width. Such as Model YX65-170-510, YX65-185-555 and so on. Users only need to adjust the spacers between the rollers for each dimension.

Main Machine Components

No.	Machine Components		Quantity	Options
1.	5Ton Hydraulic Decoiler		1 unit	Decoiler + Coil Car
2.	Main Roll Forming Machine	a. Feeding Guide	1 unit	Gear box drive Hydraulically drive
		b. Hydraulically Powered Pre-cutting
		c. Roll Forming Unit
		d. Hydraulic Cutting Device
3.	Run Out Support Table		2 units
4.	Electric Control System		1 unit
5.	Hydraulic System		1 unit

Main Machine Technical Parameters

1. Material Can Be Roll Formed: galvanized steel coils

2. Material Thickness: 0.8mm to 1.2mm

3. Control System: PLC control system

4. Drive: electrically driven via 1.2" chain and sprocket

5. Forming Steps / Roller Stations: 35 stations

6. Main Forming Power: 11kw*2

7. Forming Speed: 10-15m/min

Whole Line Work Process And Machine Layout

Work Precess

Steel coils unwinding---Rollformer entry guiding---Roll form to required profile---Cutting---Run out

Layout Of Steel Decking Rollforming Line
