Economical Design Z Purlin Making Machine , Manual Adjust Roll Forming Machine

Name: Economical Design Z Purlin Making Machine Manual Adjust Roll Forming Machine
Brand: BELIEVE INDUSTRY
Price: 28000 USD

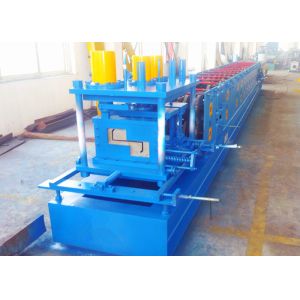

China Economical Design Z Purlin Making Machine , Manual Adjust Roll Forming Machine wholesale

Brand Name : BELIEVE INDUSTRY

Model Number : Z100-300

Place of Origin : CHINA

Price : USD 28000-30000 / set

Supply Ability : 50 sets per quarter

Delivery Time : 60 to 75 days

Packaging Details : Nude Packing (roller surface covered plastic film)

Certification : CE

Payment Terms : T/T, L/C

After-sales Service : Engineers available to serve machine overseas

Warranty : 24 months

Voltage : 380V, 3 phase, 50Hz

Z Purlin Dimensions : Z100-300

Punching And Cutting : Hydraulically powered punching and cutting

Drive Motion : Via chain and sprocket

Contact Now

Economical Design Z100-300 Z Purlin Roll Forming Machine With Manual Adjust

Description

Manully Adjustable Z Purlin Roll Forming Machine is designed to produce Z Purlins with the web size from 100-300. The operator should adjust the rollers and spacers for roll forming each dimension and users need to replace the cutting blade for different sizes of Z Purlins.

What's Z Purlin?

Z Purlin, which point symmetric sections that are shaped similar to the letter “Z” are referenced as Z shapes. Which is also widely used in metal building system.

Types of Z Purlin

Economical Design Z Purlin Making Machine , Manual Adjust Roll Forming Machine

Z Purlin Roll Forming Machine Components

Simple Uncoiler
Feeding and Guiding Device
Leveling Device
Punching Holes device
Z Purlin Roll Forming Machine Mill
Cutting Off Unit
Collection Table

Whole Line Layout

Economical Design Z Purlin Making Machine , Manual Adjust Roll Forming Machine

Production Process: Uncoiling--Feeding and Guiding--Leveling--Roll Forming--Punching--Cutting--Collection

Main Technical Specifications of Z Purlin Roll Former

No.	Item	Technical Specifications
1.	Uncoiler Type	5 Ton Single Mandrel Uncoiler
2.	Raw Material	Carbon Steel, Galvanized Steel, Q235
3.	Material Thickness	1.5-3.0mm
4.	Material Width	Depend on specific profile
5.	Diameter of Shaft	76mm
6.	Material of Shaft	40Cr with heat treatment and chrome plated
7.	Material of Rolls	GCr15 Over quenching HRC 58-62°
8.	Main Power	18.5KW
9.	Forming Speed	15-20m/min
10.	Forming Station	16 stations
11.	Cutting Type	Hydraulic cutting
12.	Cutting Blade	Cr12 Mov

Believe Industry Company have different designs of roll forming machines for z purlins. Contact us for more information
